Plant Drying


Vacuum Ovens

CVO2-VACUUM-OVEN-07-White-250x250

CVO-2 Vacuum Purge Oven

Cascade’s Model CVO-2 offers incredible temperature stability for vacuum drying and purging of pharmaceuticals, botanicals, slurries, or any temperature sensitive material. This vacuum oven liberates solvents, water, and other unwanted compounds. It’s ideal for small batch, R&D and laboratory environments.
2 -CVO-5-01-250x250

CVO-5 Vacuum Purge Oven

Cascade’s Model CVO-5 offers incredible temperature stability for vacuum drying and purging of pharmaceuticals, botanicals, slurries, or any temperature sensitive material. This vacuum oven liberates solvents, water, and other unwanted compounds. It’s ideal for small batch, R&D and laboratory environments.
3 - TVO-2-IDP3-Package-300x300

CVO-2 STANDARD Package

The CVO-2 STANDARD Package is a 2 cubic foot, benchtop vacuum oven paired with a clean, oil-free scroll pump. This package is an ideal benchtop set up for vacuum drying or purging temp sensitive material requiring a steady, gentle, non-turbulent purge. This complete system will liberate solvents, water or other unwanted compounds in a small batch, R&D, laboratory environments.
4 - CVO-2-Turbo-02-250x250

CVO-2 PRO Package

The CVO-2 PRO Package is a 2 cubic foot, benchtop vacuum oven with a powerful, clean, oil-free scroll pump. It is an ideal benchtop set up for vacuum drying or purging temp sensitive material but at faster rates, with deeper vacuum and optimized vapor flow rates. This complete system will liberate solvents, water or other unwanted compounds in a small batch, laboratory environments.
5 - TVO-5-CB-2052-Package-300x300

CVO-5 STANDARD Package

The CVO-5, 5 cubic ft vacuum oven is connected to the oil-free, rugged, Welch CB2052 diaphragm pump. Model CB2052 vacuum pump is a private label version of Welch’s 2052B-01. The vacuum pump interior is made of solvent resistant, PTFE diaphragms.
6 - CVO-5-Pro-01-250x250

CVO-5 PRO Package

The CVO-5 PRO Package pairs our CVO-5 vacuum oven with the Agilent IDP7 5.4 cfm oil free scroll pump and our fast MAX EVAP connection kit. It’s an ideal benchtop set-up for high production vacuum drying or purging. The Agilent scroll pump pulls deep vacuum to 5 x 10-2 torr range and has a low cost of ownership. It can be maintained and cleaned in house.
6 - CVO-5-Pro-01-250x250

CVO-5 TURBO Package

Complete benchtop vacuum drying system. 8 shelves for big batches. Powerful 9 cfm pump for fastest purge times. As a dedicated vacuum drying set up, The CVO-5 TURBO Package allows for the most capacity (8 shelves) and a very powerful, clean quiet Agilent IDP15, 9cfm vacuum pump.

Vacuum oven and pump are connected via our MAX EVAP connection – giving water, solvents, surfactants, any outgassing material the largest exit path off the product and out of the oven. The MAX EVAP connection kit features a large 1″ diameter oven exit port, KF-25 lines and a KF-25 precision adjustable vacuum valve to reduce purge and dry times.

8 - Double-Up-with-IDP15-02-250x250

CVO-5 DOUBLE UP Package

Ideal for large volume production with the flexibility of small batch management, this complete vacuum drying system is self contained in a minimal, easy to move, mobile foot print. Two CVO-5 vacuum ovens powered by a single Agilent IDP15 9 cfm oil free scroll pump is set-up for high production vacuum drying or purging with deep vacuum and large off gas loads.
9 - CVO-10-Package-250x250

CVO-10 PRO Package

High production, large vacuum drying system for vacuum purging production quantities. Our largest 10 cubic foot vacuum oven complete with the Agilent IDP15 9 cfm oil-free scroll pump. The entire system is set on an industrial grade mobile rack for easy of mobility and to aid in keeping the lab clean.

Vacuum oven and pump are connected via our MAX EVAP connection kit – giving water, solvents, any outgassing material the largest exit path off the product and out of the oven. NRTL Certified, Made in USA.

10 - CVO-10-Pro-01-510x510

CVO-10 PRO Package with MAXTRAP50 Cold Trap

A complete vacuum drying system designed for temperature sensitive, high-thru-put for vacuum purging large production quantities. Cascade’s MAXTRAP50, -50C cold trap is integrated to keep the Agilent IDP15 vacuum pump operating with minimum downtime and maximum efficiency.

Vacuum oven and pump are connected via our MAX EVAP connection kit – giving water, solvents, any outgassing material the largest exit path off the product and out of the oven.

The entire system is set on an industrial grade mobile racks for easy of mobility and to help keep the lab clean. NRTL Certified. CVO-10 oven and cold trap are Made in USA.


Chemistry Pumping Unit - PC 3004 VARIO

VARIO® pumps and pumping units provide precise vacuum control by adaptation of the diaphragm pump´s motor speed. They feature fully automatic evaporation control on the push of a button. The basic pump is the three-stage MD 4C NT VARIO chemistry diaphragm pump which meets high vacuum requirements for most high boiling solvents. The PC 3004 VARIO offers a well proven choice for evaporation of large amounts of solvents. The separator at the inlet, made of glass with protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet enables near-100-percent solvent recovery, efficient recycling and active environmental protection. The on-demand motor speed control results in unsurpassed lifetimes of service parts, such as diaphragms.

Performance Features

  • automatic adaptation of the vacuum level throughout the process for high process reliability and unattended operation
  • short process times due to high pumping speed and zero-fluctuation (hysteresis-free) vacuum control
  • easily operated CVC 3000 vacuum controller with clear text menus, with integrated venting valve
  • extraordinary diaphragm life, therefore minimum operational and servicing costs
  • PC 3004 VARIO: excellent environmental friendliness due to efficient solvent recovery

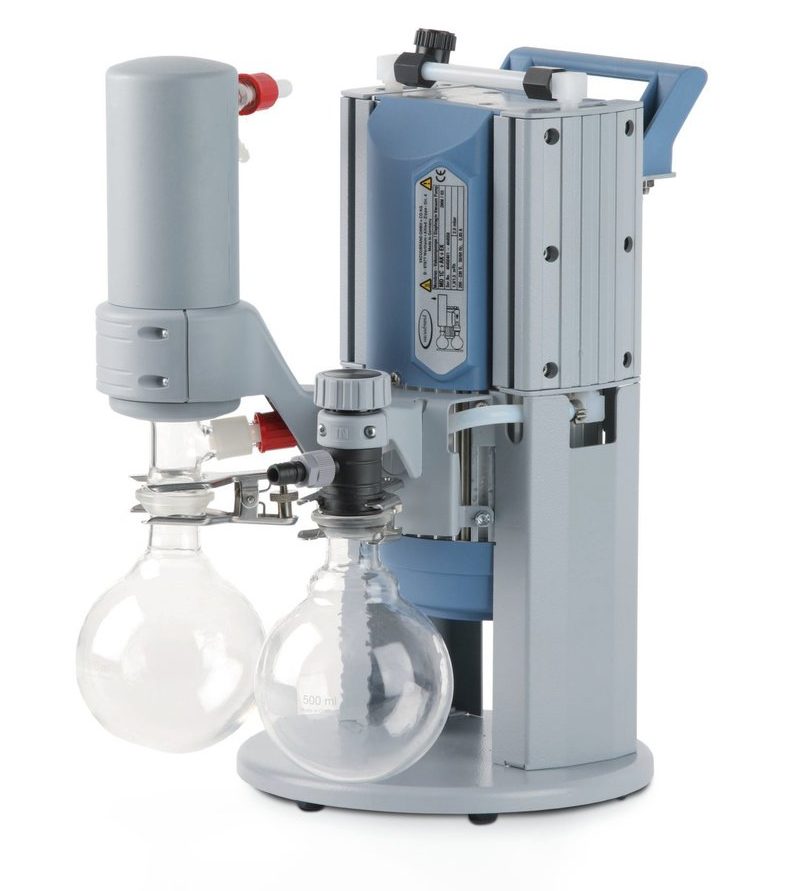

Chemistry Vacuum System - MD 1C +AK +EK

This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors. This system is usable for increased vacuum requirements with high boiling solvents and often replaces rotary vane pumps. Typical applications are rotary evaporators and vacuum drying ovens. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) is highly efficient and compact. The condenser enables near-100-percent solvent recovery, efficient recycling and active protection of the environment.

Performance Features

  • outstanding chemical resistance and superior vapor tolerance
  • exceptionally high performance even at low vacuum
  • excellent ultimate vacuum even with gas ballast
  • whisper quiet and ultra low vibration
  • excellent environmental friendliness due to efficient solvent recovery

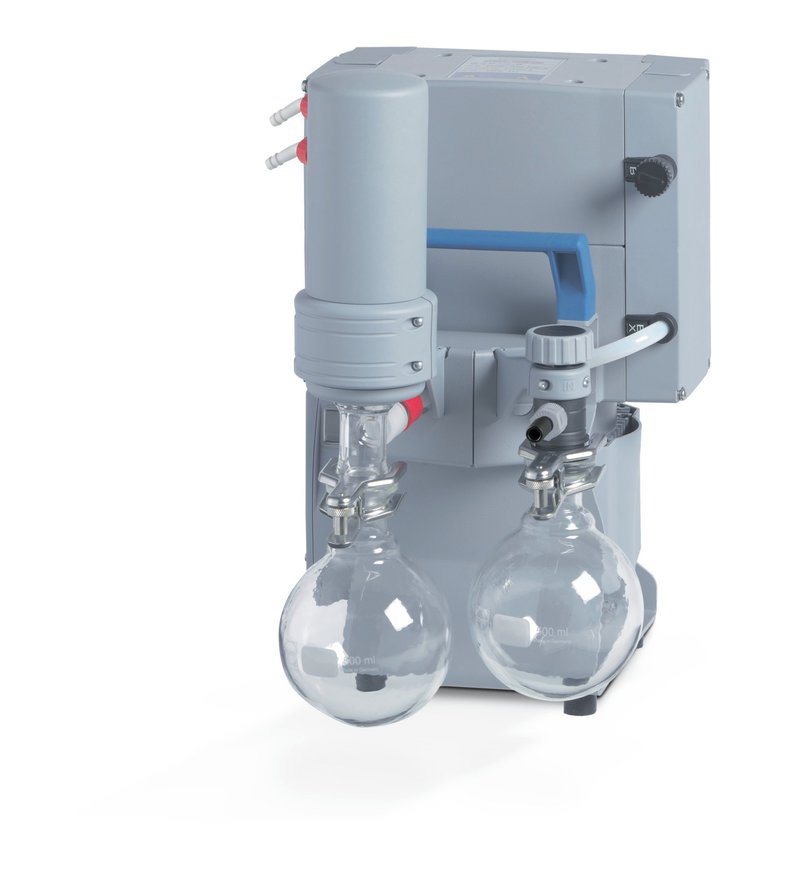

Chemistry Vacuum System - MD 4C NT +AK+EK

This chemistry vacuum system has a wide range of applications like evacuation, evaporation, and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories. This system is ideal for high vacuum requirements with high boiling solvents. Typical applications are rotary evaporators and drying ovens. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The waste vapor condenser at the outlet (EK) is highly efficient and compact. The condenser enables near-100-percent solvent recovery, efficient recycling of solvents and active protection of the environment.

Performance Features

  • outstanding chemical resistance and superior vapor tolerance
  • exceptionally high performance even at low vacuum
  • excellent ultimate vacuum even with gas ballast
  • whisper quiet and very low vibration
  • excellent environmental friendliness due to efficient solvent recovery
